Tank Farm Area
  • 44,000 m²
Fuel Receipt
  • By pipeline
  • By trucks
Storage
  • 4 storage tanks of 6,000 m³ each
  • Tankage: 24,000 m³ of Jet A-1
Hydrant Refueling System
  • Maximum flow rate of 2,000 m³/h by 5 hydrant pumps
  • Twin transfer lines to the apron, feeding 6 loops for aircraft refueling
  • Fuel transfer and facilities for the into-plane companies
Systems
  • Fuel quality protection and control
  • Fully automated operations: 2 hot redudant PLCs (Programmable Logic Controller) and SCADA
         (Supervisory Control and Data Acquisition)
  • On-line fuel stock management
  • Emergency fuel shut off
  • Automated fire fighting
  • Environmental management system in force for the design, construction and operation of all facilities

 facil1


Fuel Receipt by Pipeline
  • Fuel transfer from the refineries, directly to OFC, without any intermediate storage depot
  • 10' underground pipeline of a total length of 53 km, dedicated to Jet A-1
  • Maximum flow rate: 300 m³/h
  • Fully automated operations, interconnecting also the OFC's and the refineries' automation systems

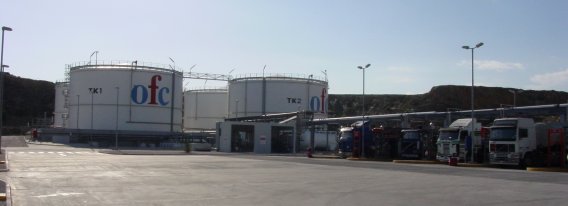

Fuel Receipt by Trucks
  • 5 off-loading bays and 1 loading bay 18 parking lots for trucks
  • Maximum off-loading flow rate: 600 m³/h
  • Fully automated system, incorporating requirements on fuel quality and safety
  • Closed sampling system
  • Impermeable concrete and floor construction, covering all off-loading islands and sewer system connected to the
         oil-water separator
Refueller Truck Bottom Loading
  • 1 loading bay
  • Maximum loading flow rate: 120 m³/h
  • Fully automated system, incorporating requirements on fuel quality and safety
  • Closed sampling system
  • Impermeable concrete and floor construction, covering all loading islands and sewer system connected to the
         oil-water separator

facil3

Storage Tanks
  • Four vertical tanks, fully epoxy-coated (internally and externally)
  • Cone down bottom with central sump for fuel quality controls
  • Double bottom with continuous monitoring by vacuum system for leakage detection
  • Floating suction
  • Auto-gauging system
  • Two independent systems for tank overfill protection
  • Several high and low level alarms
Hydrant Pump Station for Aircraft Refuelingfacil6
  • 5 hydrant pumps, powered by frequency converters
  • Maximum flow rate: 2,000 m³/h
  • Fully automated system, controlling the pumps according to air aircraft refueling demands and
         providing the maximum desired pressure and flow for timely and safely refueling services

Hydrant Refueling System

  • 10 km of 20' underground twin transfer lines
  • 8 valve vaults for fuel distribution to aircraft stands
  • 8 km underground distribution pipes in 6 loops and 124 fuel pits
  • Independent fuel transfer to into-plane Jet A-1 facilities for test rig, fuelers loading, etc.
  • Automation system, which controls fuel flow to each loop, adjusting flow rates at the expected pressure for timely
         aircraft refueling

Automated Operation in all OFC Facilitiesfacil5

  • Fully automated operations PLCs and SCADA system
  • Real time process monitoring and visualisation of all operations (fuel, fire fighting, environmental
          protection, safety, emergency systems)
  • Statistics and graphs of the operations of all major pieces of equipment in control
  • Alarm systems for immediate shut down of fuel transfer in case of emergency
  • Tightness control system of testing the integrity of the underground piping network through special
          software and electromechanical equipment

Fire Fighting System

facil4

  • All storage tanks are equipped with fixed fighting system (foam, cooling water)
  • Various sizes and types of fire extinguishers
  • Interconnection with airport’s fire brigade
  • The equipment is UL / FM approved
